Shiro

1 Shiro 架构及概念

在 Shiro 中，认证的对象用 Subject 表示，它相当于请求过来的用户，主要包含两个信息:

Principal：主题，类比用户名，代表 Subject 的一个标识属性。
Credential：凭证，类比密码，代表用来验证 Subject 的信息。

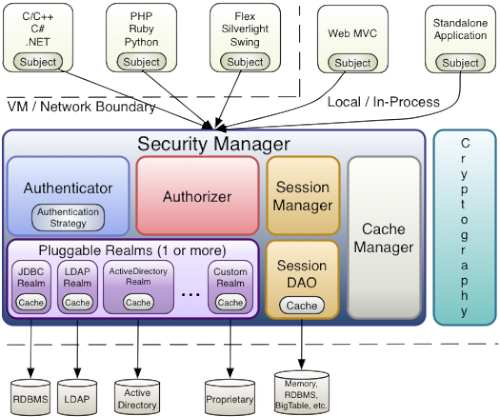

Shiro 的架构如下图所示:

Shiro 的核心是 SecurityManager，获取数据的途径是 Realm:

SecurityManager：它管理着所有 Subject、且负责进行认证和授权、及会话、缓存的管理
Realm：它是数据访问的接口，用来获取鉴权、授权相关的数据（帐号、密码、权限、角色等）
Authenticator：认证器，负责 Subject 认证的，即确定用户是否登录成功
Authorizer：授权器，即权限授权，给 Subject 分配权限，以此控制可访问的资源
SessionManager：它可以帮助在不同的环境下使用 session 功能，比如非 web 环境下和分布式环境下等
SessionDAO：对 session 的 CURD 操作
CacheManager：缓存控制器，来管理如用户、角色、权限等的缓存的
Cryptography：密码模块，用于加密解密
Permission/Role：权限是描述功能的一种声明；角色代表权限的集合
AuthenticationToken/AuthenticationInfo/AuthorizationInfo/SecurityUtils：Others.

2 验证方式

2.1 URL级别验证

/index.html = anon
/user/create = anon
/user/** = authc
/admin/** = authc, roles[administrator]
/rest/** = authc, rest
/remoting/rpc/** = authc, perms["remote:invoke"]

其中:

anon,authc,authcBasic,user 是认证过滤器
perms,port,rest,roles,ssl 是授权过滤器

它们本质都是些 Filter，定义在 DefaultFilter 里:

public enum DefaultFilter {
    anon(AnonymousFilter.class),
    authc(FormAuthenticationFilter.class),
    authcBasic(BasicHttpAuthenticationFilter.class),
    logout(LogoutFilter.class),
    noSessionCreation(NoSessionCreationFilter.class),
    perms(PermissionsAuthorizationFilter.class),
    port(PortFilter.class),
    rest(HttpMethodPermissionFilter.class),
    roles(RolesAuthorizationFilter.class),
    ssl(SslFilter.class),
    user(UserFilter.class);
}

2.2 编程式验证

Subject subject = SecurityUtils.getSubject();
if(subject.hasRole(“admin”)) {
    //有权限
} else {
    //无权限
}

2.3 JSP标签 / Annotation

这是为了能够简化使用:

标签用在 jsp 中
注解用在方法上，结合 AOP 功能实现

引入标签:

@ taglib prefix="shiro" uri="http://shiro.apache.org/tags" %>

标签示例:

Hello, <shiro:principal type|property />.

<shiro:guest|user>
  Hi there!  Please <a href="login.jsp">Login</a> or <a href="signup.jsp">Signup</a> today!
</shiro:guest|user>

<shiro:authenticated|notAuthenticated>
  <a href="updateAccount.jsp">Update your contact information</a>.
</shiro:authenticated|notAuthenticated>

<shiro:hasRole|lacksRole|hasAnyRoles name="administrator">
  <a href="admin.jsp">Administer the system</a>
</shiro:hasRole|lacksRole|hasAnyRoles>

<shiro:hasPermission|lacksPermission name="user:create">
  <a href="createUser.jsp">Create a new User</a>
</shiro:hasPermission|lacksPermission>

常用注解:

@RequiresAuthentication
@RequiresGuest
@RequiresPermissions("account:create")
@RequiresRoles("administrator")
@RequiresUser

简单示例:

@RequiresRoles("admin")
public void hello() {
    // 有权限
}

3 Spring MVC + Shiro

3.1 首先，添加 jar 包

<!-- https://mvnrepository.com/artifact/org.apache.shiro/shiro-spring -->
<dependency>
    <groupId>org.apache.shiro</groupId>
    <artifactId>shiro-spring</artifactId>
    <version>1.4.0</version>
</dependency>

3.2 其次，为项目添加过滤器

主要配置 SecurityManager 和 ShiroFilter 两个 Bean:

@Override
protected Filter[] getServletFilters() {
    // encoding
    CharacterEncodingFilter encodingFilter = new CharacterEncodingFilter("UTF-8", true);

    // delegate to bean named 'shiroFilter'
    DelegatingFilterProxy shiroFilter = new DelegatingFilterProxy("shiroFilter");
    shiroFilter.setTargetFilterLifecycle(true);

    return new Filter[] { shiroFilter, encodingFilter };
}

3.3 配置容器

@Configuration
@Import({ShiroBeanConfiguration.class, ShiroAnnotationProcessorConfiguration.class})
public class ShiroConfig {
    @Bean DefaultWebSecurityManager securityManager() {
        DefaultWebSecurityManager manager = new DefaultWebSecurityManager();
        manager.setRealm(new MyRealm());
        manager.setSessionManager(sessionManager());
        return manager;
    }

    @Bean ShiroFilterFactoryBean shiroFilter() {
        ShiroFilterFactoryBean bean = new ShiroFilterFactoryBean();
        bean.setSecurityManager(securityManager());

        bean.setLoginUrl("/login");
        bean.setSuccessUrl("/home");
        bean.setUnauthorizedUrl("/unauth");

        bean.setFilterChainDefinitionMap(new LinkedHashMap<String, String>() {{
            put("/login", "anon");
            put("/admin*", "authc");
            put("/jobs/**", "perms[JOB:CREATE]");
        }});

        bean.setFilters(new LinkedHashMap<String, Filter>() {{
            put("logout", new LogoutFilter());
        }});

        return bean;
    }

    ////////// 一些可选的 //////////

    @Bean DefaultWebSessionManager sessionManager() {
        DefaultWebSessionManager manager = new DefaultWebSessionManager();
        manager.setCacheManager(cacheManager());
        manager.setSessionDAO(new MemorySessionDAO());
        manager.setDeleteInvalidSessions(true);
        manager.setSessionValidationSchedulerEnabled(true);
        return manager;
    }

    @Bean MemoryConstrainedCacheManager cacheManager() {
        return new MemoryConstrainedCacheManager();
    }

    @Bean CookieRememberMeManager rememberMeManager() {
        CookieRememberMeManager manager = new CookieRememberMeManager();
        manager.setCookie(new SimpleCookie("rememberMe"));
        manager.setCipherKey(Base64.getDecoder().decode("5AvVhmFLUs0KTA3Kprsdag=="));
        return manager;
    }
}

3.4 可自定义 Realm / CredentialsMatcher

定义 Realm，只需要实现 AuthorizingRealm 接口:

@Component
public class MyRealm extends AuthorizingRealm {
    @Resource
    private UserService userService;

    /**
     * 验证当前登录的用户
     */
    @Override
    protected AuthenticationInfo doGetAuthenticationInfo(AuthenticationToken token) throws AuthenticationException {
        String userName = (String) token.getPrincipal();
        User user = userService.getByUserName(userName);
        if (user != null) {
            return new SimpleAuthenticationInfo(user.getUsername(), user.getPassword(), getName());
        }
        return null;
    }

    /**
     * 为当前登录的用户授予角色和权限
     */
    @Override
    protected AuthorizationInfo doGetAuthorizationInfo(PrincipalCollection principals) {
        String userName = (String) principals.getPrimaryPrincipal();
        SimpleAuthorizationInfo authorizationInfo = new SimpleAuthorizationInfo();
        authorizationInfo.setRoles(userService.getRoles(userName));
        authorizationInfo.setStringPermissions(userService.getPermissions(userName));
        return authorizationInfo;
    }
}

3.5 登录示例

Controller

@GetMapping("/login")
public String login (User user) {
    return "login";
}

@PostMapping("/login")
public String doLogin (User user, Model model) {
    String message = null;
    Subject subject = SecurityUtils.getSubject();
    UsernamePasswordToken token = new UsernamePasswordToken(user.getUsername(), user.getPassword(), true);
    try {
        subject.login(token);
        return subject.isAuthenticated() ? "redirect: /" : "login";
    } catch (IncorrectCredentialsException e) {
        message = "登录密码错误. Password for account " + token.getPrincipal() + " was incorrect.";
    } catch (ExcessiveAttemptsException e) {
        message = "登录失败次数过多";
    } catch (LockedAccountException e) {
        message = "帐号已被锁定. The account for username " + token.getPrincipal() + " was locked.";
    } catch (DisabledAccountException e) {
        message = "帐号已被禁用. The account for username " + token.getPrincipal() + " was disabled.";
    } catch (ExpiredCredentialsException e) {
        message = "帐号已过期. the account for username " + token.getPrincipal() + "  was expired.";
    } catch (UnknownAccountException e) {
        message = "帐号不存在. There is no user with username of " + token.getPrincipal();
    } catch (UnauthorizedException e) {
        message = "您没有得到相应的授权！" + e.getMessage();
    }
    model.addAttribute("message", message);
    return "login";
}

<!DOCTYPE html>
<html>
  <head>
    <meta charset="utf-8" />
    <title>Login Page</title>
  </head>
  <body>
    <h1>login page</h1>
    <form action="/login" method="post">
      <input tyep="text" name="userName" />
      <input type="password" name="password" />
      <input type="submit" value="login" />
    </form>
    <P>${message}</P>
  </body>
</html>

4 Spring + Shiro + JWT 实现无状态鉴权

4.1 基本流程（参考）

基本流程:

首先 Post 用户名与密码到 user/login 进行登入，如果成功返回一个加密的 AccessToken，失败的话直接返回 401错误(帐号或密码不正确)
以后访问都带上这个 AccessToken 即可
鉴权流程主要是重写了 Shiro 的入口过滤器 JWTFilter(BasicHttpAuthenticationFilter)
判断请求 Header 里面是否包含 Authorization 字段，有就进行 Shiro 的 Token 登录认证授权，没有就以游客直接访问

结合 Redis 实现登录控制:

登录认证通过后返回 AccessToken 信息 (在 AccessToken 中保存当前的时间戳和帐号)
同时在 Redis 中设置一条 Key 为账号，Value 为当前时间戳(登录时间)的 RefreshToken
现在认证时必须 AccessToken 没失效以及 Redis 存在所对应的 RefreshToken，且 RefreshToken 时间戳和 AccessToken 信息中时间戳一致才算认证通过
这样可以做到 JWT 的可控性，如果重新登录获取了新的 AccessToken，旧的 AccessToken 就认证不了，因为 Redis 中所存放的的 RefreshToken 时间戳信息只会和最新的 AccessToken 信息中携带的时间戳一致，这样每个用户就只能使用最新的 AccessToken 认证
Redis 的 RefreshToken 也可以用来判断用户是否在线，如果删除 Redis 的某个 RefreshToken，那这个 RefreshToken 所对应的 AccessToken 之后也无法通过认证了，就相当于控制了用户的登录，可以剔除用户

实现自动刷新:

本身 AccessToken 的过期时间为 5 分钟(可配置)，RefreshToken 过期时间为30分钟 (可配置)
当登录后时间过了 5 分钟之后，当前 AccessToken 便会过期失效，再次带上 AccessToken 访问 JWT 会抛出 TokenExpiredException 异常
Token 过期，开始判断是否要进行 AccessToken 刷新，首先 Redis 查询 RefreshToken 是否存在，以及时间戳和过期 AccessToken 所携带的时间戳是否一致
如果存在且一致就进行 AccessToken 刷新，时间戳为当前最新时间戳，同时也设置 RefreshToken 中的时间戳为当前最新时间戳
最终将刷新的 AccessToken 存放在 Response 的 Header 中的 Authorization 字段返回 (前端进行获取替换，下次用新的 AccessToken 进行访问)

4.2 UserController 示例

@RestController
@RequestMapping("/user")
@PropertySource("classpath:config.properties")
public class UserController {
    @Value("${refreshTokenExpireTime}")
    private String refreshTokenExpireTime;

    @Resource
    private UserService userService;

    /**
     * 登录授权
     */
    @PostMapping("/login")
    public ResponseBean login(@Validated(UserLoginValidGroup.class) @RequestBody UserDto userDto, HttpServletResponse httpServletResponse) {
        UserDto userDtoTemp = new UserDto();
        userDtoTemp.setAccount(userDto.getAccount());
        userDtoTemp = userService.selectOne(userDtoTemp);

        if (userDtoTemp == null) {
            throw new CustomUnauthorizedException("该帐号不存在(The account does not exist.)");
        }

        String key = AesCipherUtil.deCrypto(userDtoTemp.getPassword());
        if (key.equals(userDto.getAccount() + userDto.getPassword())) {
            if (JedisUtil.exists(Constant.PREFIX_SHIRO_CACHE + userDto.getAccount())) {
                JedisUtil.delKey(Constant.PREFIX_SHIRO_CACHE + userDto.getAccount());
            }
            String currentTimeMillis = String.valueOf(System.currentTimeMillis());
            JedisUtil.setObject(Constant.PREFIX_SHIRO_REFRESH_TOKEN + userDto.getAccount(), currentTimeMillis, Integer.parseInt(refreshTokenExpireTime));
            String token = JwtUtil.sign(userDto.getAccount(), currentTimeMillis);
            httpServletResponse.setHeader("Authorization", token);
            httpServletResponse.setHeader("Access-Control-Expose-Headers", "Authorization");
            return new ResponseBean(200, "登录成功(Login Success.)", null);
        } else {
            throw new CustomUnauthorizedException("帐号或密码错误(Account or Password Error.)");
        }
    }

    /**
     * 测试登录
     */
    @GetMapping("/article")
    public ResponseBean article() {
        Subject subject = SecurityUtils.getSubject();
        if (subject.isAuthenticated()) {
            return new ResponseBean(200, "您已经登录了(You are already logged in)", null);
        } else {
            return new ResponseBean(200, "你是游客(You are guest)", null);
        }
    }

    /**
     * 获取用户列表
     */
    @GetMapping
    @RequiresPermissions(logical = Logical.AND, value = {"user:view"})
    public ResponseBean user(@Validated BaseDto baseDto) {
        PageHelper.startPage(baseDto.getPage(), baseDto.getRows());
        List<UserDto> userDtos = userService.selectAll();
        PageInfo<UserDto> selectPage = new PageInfo<UserDto>(userDtos);
        if (userDtos == null || userDtos.size() <= 0) {
            throw new CustomException("查询失败(Query Failure)");
        }
        Map<String, Object> result = new HashMap<String, Object>(16);
        result.put("count", selectPage.getTotal());
        result.put("data", selectPage.getList());
        return new ResponseBean(200, "查询成功(Query was successful)", result);
    }

    /**
     * 获取在线用户(查询 Redis 中的 RefreshToken)
     */
    @GetMapping("/online")
    @RequiresPermissions(logical = Logical.AND, value = {"user:view"})
    public ResponseBean online() {
        List<Object> userDtos = new ArrayList<>();
        Set<String> keys = JedisUtil.keysS(Constant.PREFIX_SHIRO_REFRESH_TOKEN + "*");
        for (String key : keys) {
            if (JedisUtil.exists(key)) {
                String[] strArray = key.split(":");
                UserDto userDto = new UserDto();
                userDto.setAccount(strArray[strArray.length - 1]);
                userDto = userService.selectOne(userDto);
                userDto.setLoginTime(new Date(Long.parseLong(JedisUtil.getObject(key).toString())));
                userDtos.add(userDto);
            }
        }
        if (userDtos.size() <= 0) {
            throw new CustomException("查询失败(Query Failure)");
        }
        return new ResponseBean(200, "查询成功(Query was successful)", userDtos);
    }

    /**
     * 获取指定用户
     */
    @GetMapping("/{id}")
    @RequiresPermissions(logical = Logical.AND, value = {"user:view"})
    public ResponseBean findById(@PathVariable("id") Integer id) {
        UserDto userDto = userService.selectByPrimaryKey(id);
        if (userDto == null) {
            throw new CustomException("查询失败(Query Failure)");
        }
        return new ResponseBean(200, "查询成功(Query was successful)", userDto);
    }

    /**
     * 新增用户
     */
    @PostMapping
    @RequiresPermissions(logical = Logical.AND, value = {"user:edit"})
    public ResponseBean add(@Validated(UserEditValidGroup.class) @RequestBody UserDto userDto) {
        UserDto userDtoTemp = new UserDto();
        userDtoTemp.setAccount(userDto.getAccount());
        userDtoTemp = userService.selectOne(userDtoTemp);
        if (userDtoTemp != null && StringUtil.isNotBlank(userDtoTemp.getPassword())) {
            throw new CustomUnauthorizedException("该帐号已存在(Account exist.)");
        }
        userDto.setRegTime(new Date());
        if (userDto.getPassword().length() > 8) {
            throw new CustomException("密码最多8位(Password up to 8 bits.)");
        }
        String key = AesCipherUtil.enCrypto(userDto.getAccount() + userDto.getPassword());
        userDto.setPassword(key);
        int count = userService.insert(userDto);
        if (count <= 0) {
            throw new CustomException("新增失败(Insert Failure)");
        }
        return new ResponseBean(200, "新增成功(Insert Success)", userDto);
    }

    /**
     * 更新用户
     */
    @PutMapping
    @RequiresPermissions(logical = Logical.AND, value = {"user:edit"})
    public ResponseBean update(@Validated(UserEditValidGroup.class) @RequestBody UserDto userDto) {
        UserDto userDtoTemp = new UserDto();
        userDtoTemp.setAccount(userDto.getAccount());
        userDtoTemp = userService.selectOne(userDtoTemp);
        if (userDtoTemp == null) {
            throw new CustomUnauthorizedException("该帐号不存在(Account not exist.)");
        } else {
            userDto.setId(userDtoTemp.getId());
        }
        if (!userDtoTemp.getPassword().equals(userDto.getPassword())) {
            if (userDto.getPassword().length() > 8) {
                throw new CustomException("密码最多8位(Password up to 8 bits.)");
            }
            String key = AesCipherUtil.enCrypto(userDto.getAccount() + userDto.getPassword());
            userDto.setPassword(key);
        }
        int count = userService.updateByPrimaryKeySelective(userDto);
        if (count <= 0) {
            throw new CustomException("更新失败(Update Failure)");
        }
        return new ResponseBean(200, "更新成功(Update Success)", userDto);
    }

    /**
     * 删除用户
     */
    @DeleteMapping("/{id}")
    @RequiresPermissions(logical = Logical.AND, value = {"user:edit"})
    public ResponseBean delete(@PathVariable("id") Integer id) {
        int count = userService.deleteByPrimaryKey(id);
        if (count <= 0) {
            throw new CustomException("删除失败，ID不存在(Deletion Failed. ID does not exist.)");
        }
        return new ResponseBean(200, "删除成功(Delete Success)", null);
    }

    /**
     * 踢除在线用户
     */
    @DeleteMapping("/online/{id}")
    @RequiresPermissions(logical = Logical.AND, value = {"user:edit"})
    public ResponseBean deleteOnline(@PathVariable("id") Integer id) {
        UserDto userDto = userService.selectByPrimaryKey(id);
        if (JedisUtil.exists(Constant.PREFIX_SHIRO_REFRESH_TOKEN + userDto.getAccount())) {
            if (JedisUtil.delKey(Constant.PREFIX_SHIRO_REFRESH_TOKEN + userDto.getAccount()) > 0) {
                return new ResponseBean(200, "剔除成功(Delete Success)", null);
            }
        }
        throw new CustomException("剔除失败，Account不存在(Deletion Failed. Account does not exist.)");
    }
}

4.3 前端接收/发送 token 示例

在 Vue 中设置 axios 的拦截器，来获取/刷新登录:

created: function () {
    this.$axios.defaults.baseURL = 'http://localhost:8080';
    this.$axios.defaults.timeout = 10000;
    this.$root.loginStatus = this.cookies.get('accessToken') ? false : true;

    // 请求拦截器设置 headers
    this.$axios.interceptors.request.use(config => {
        var accessToken = this.cookies.get('accessToken');
        if (accessToken && accessToken !== '') {
            config.headers.common['Authorization'] = accessToken;
        }
        return config;
    }, error => {
        return Promise.reject(error);
    })

    // 响应拦截器获取 headers，设置(刷新) Token
    this.$axios.interceptors.response.use(response => {
        var accessToken = response.headers['authorization'];
        if (accessToken && accessToken !== '') {
            this.cookies.set('accessToken', accessToken, { expires: 1, path: '/' });
        }
        return response;
    }, error => {
        return Promise.reject(error)
    })
},
//...
